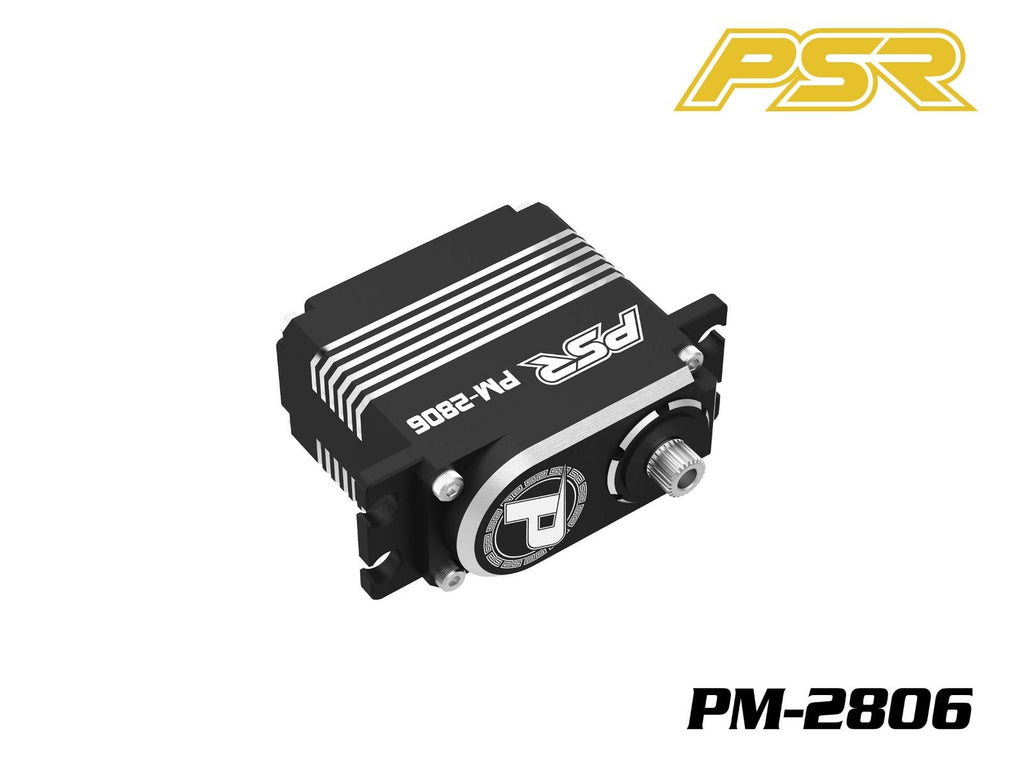

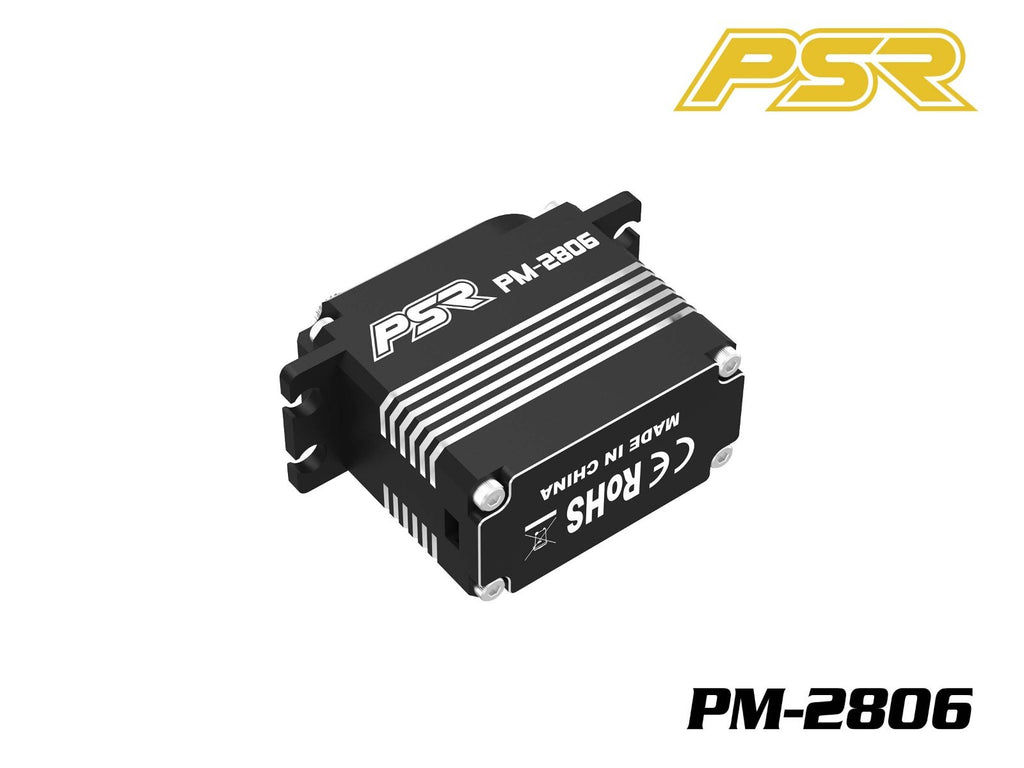

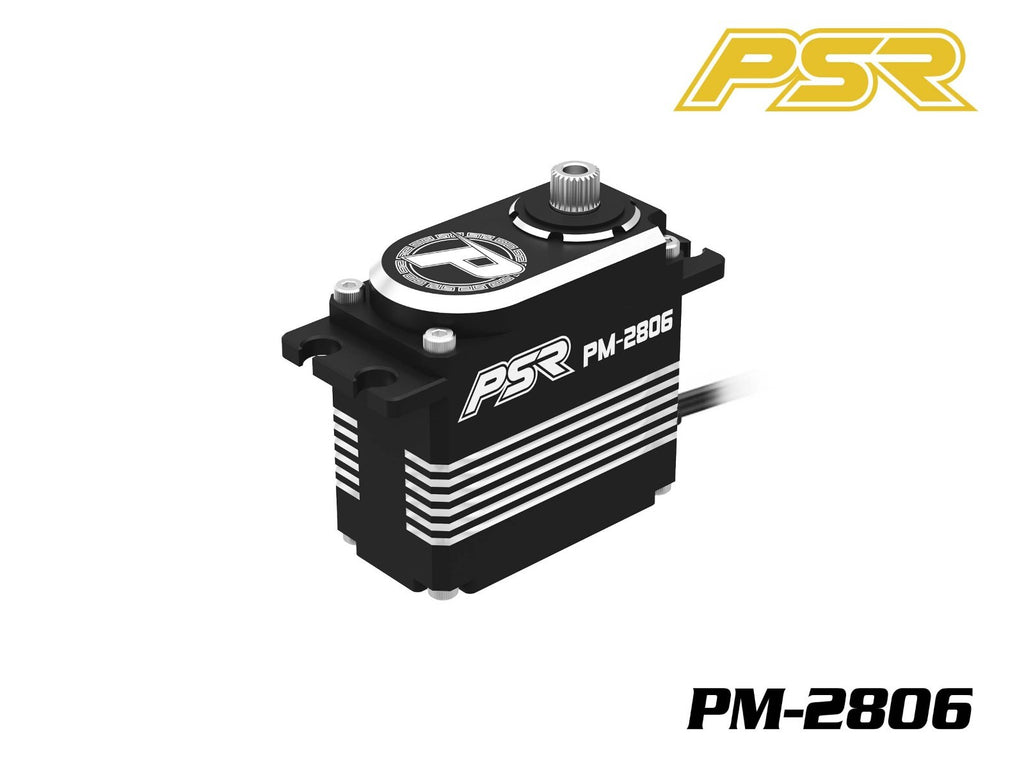

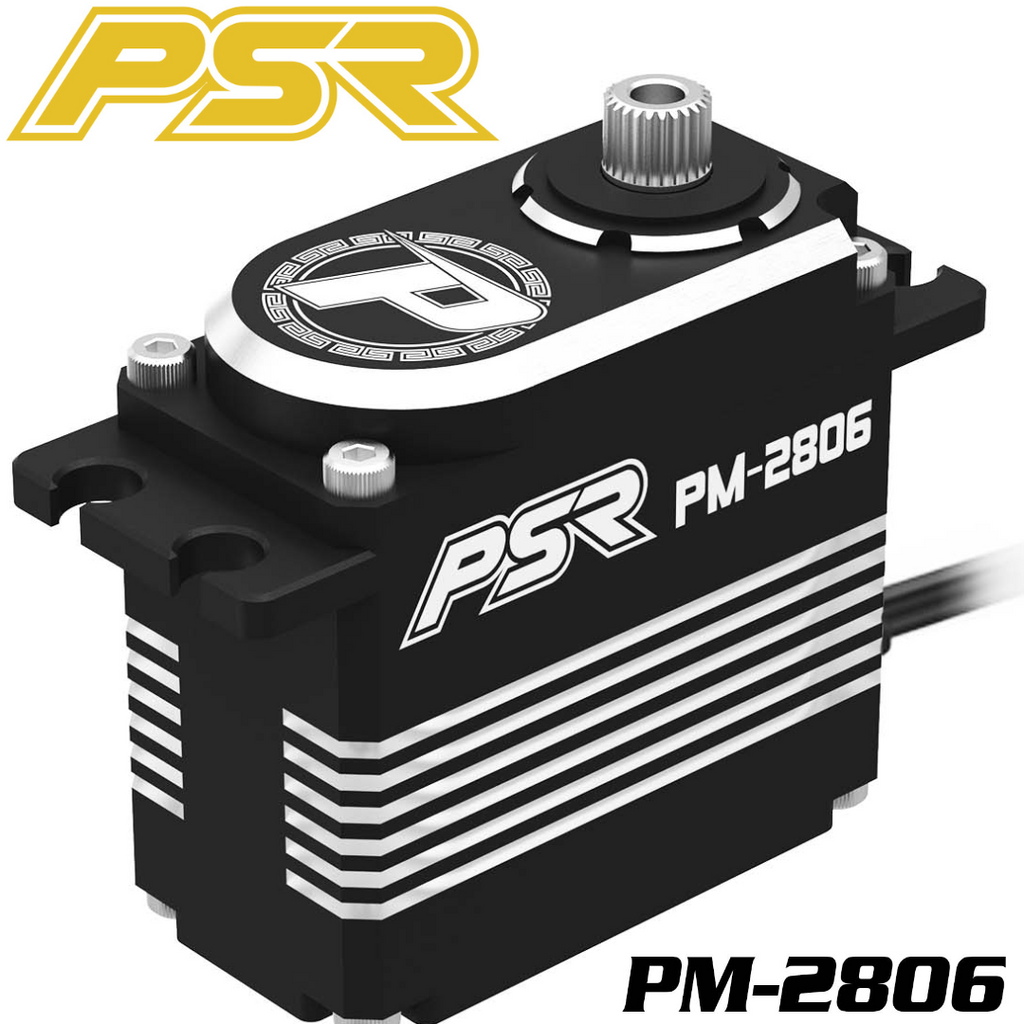

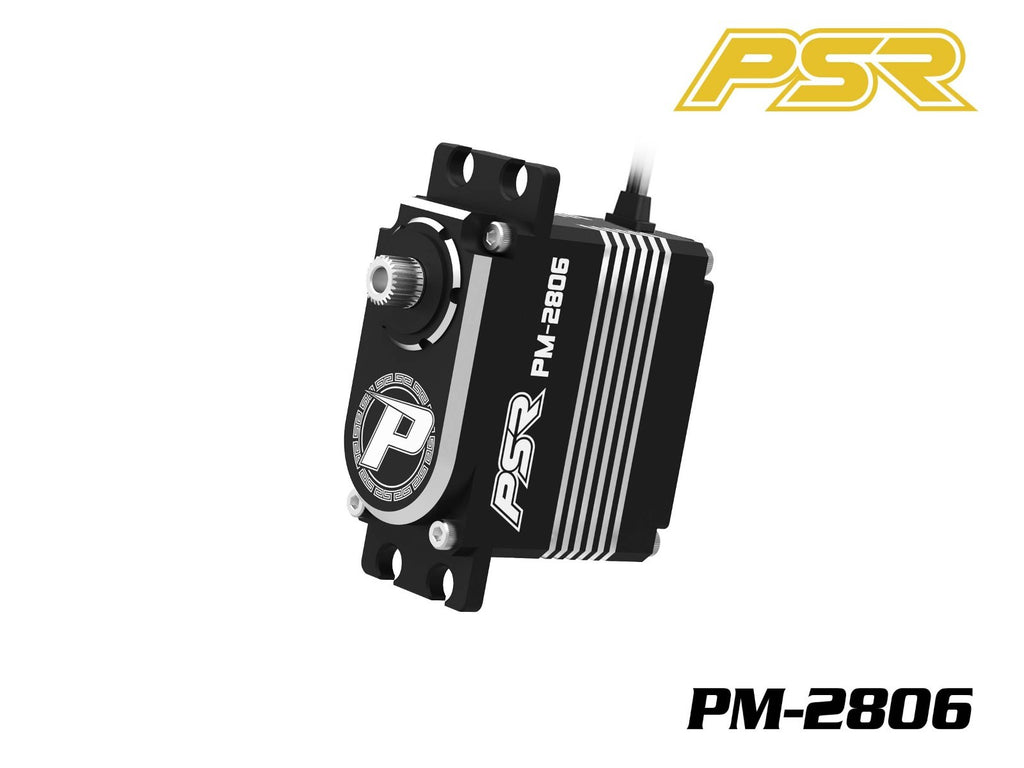

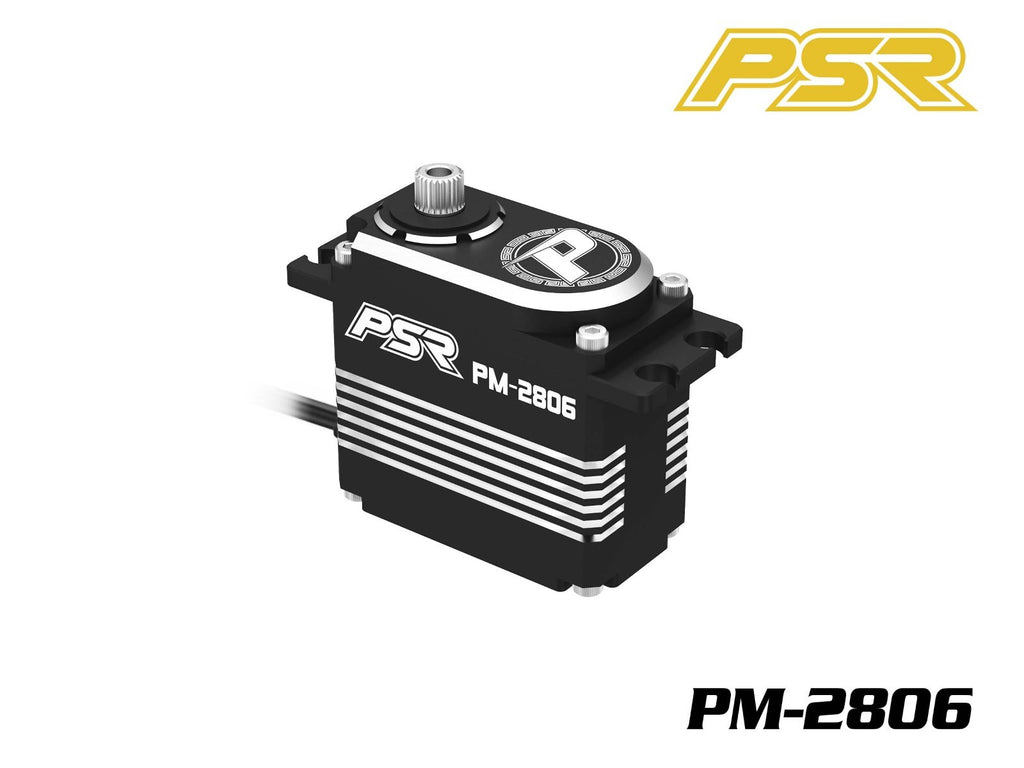

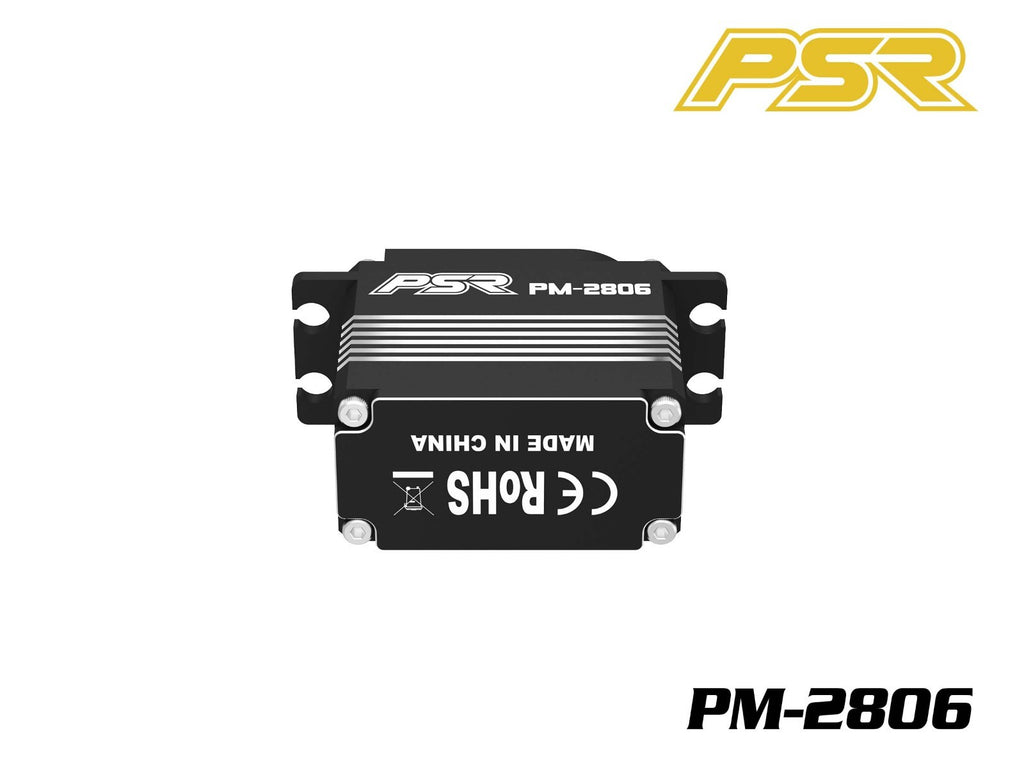

This servo is a genuine OEM part from POWERSTAR Racing.
Features:
- Full CNC Aluminum case for the best thermal dissipation and durability.
- Use high-quality Brushless motor design provides extremely high speed, top efficiency, and lower power consumption, and resistance high temperature magnet.
- Strong Metal Gear, Using the steel gear to increase the intensity, Reduce the inertia at the same intensity, Using the aluminum gear to reduce the noise. High-Speed, High-precision 32-bit converter
- Potentiometer, precision, Stable, low noise
- Perfect packaging to enhance the brand figure.
- Over current protection &over temperature protection
- High Torque & Speed - The maximum torque of short body servo is up to 28 kg-cm @ 8.4V. Operating Speed: 0.06sec/60°
- Upgrade & Programmable - The upgrade high torque HV digital servo is programmable servo ,programmer can change torque, speed, angle, inversion, etc.
Application - Ideal for 1/10, 1/12 touring cars, racing cars , airplane, boat, aircraft applications.
PowerStar PM-2806 Specifications:
Torque(6.0V): 24.0 kg-cm /333 oz-in
Torque(7.4V): 26.0 kg-cm /361 oz-in
Torque(8.4V): 28.0 kg-cm /389 oz-in
Speed:
0.08sec(6.0V)
0.07sec(7.4V)
0.06sec(8.4V)
Operating Voltage：4.8V ~ 8.4V
Weight: 79g ( no including accessory)
Bearing Type：Metal Bearing *2 pcs
Motor Type：Brushless
Gear Type：Steel(enhanced)
Operating Temperature range：-20℃~+60℃
Working frequency：1500μs / 333Hz

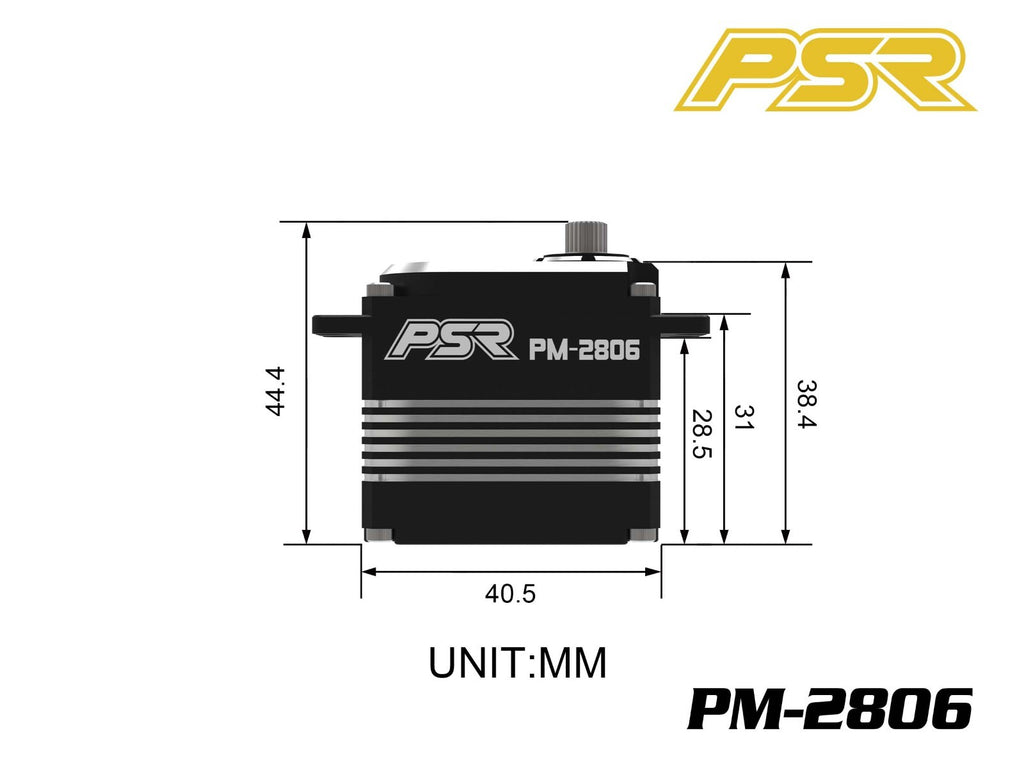

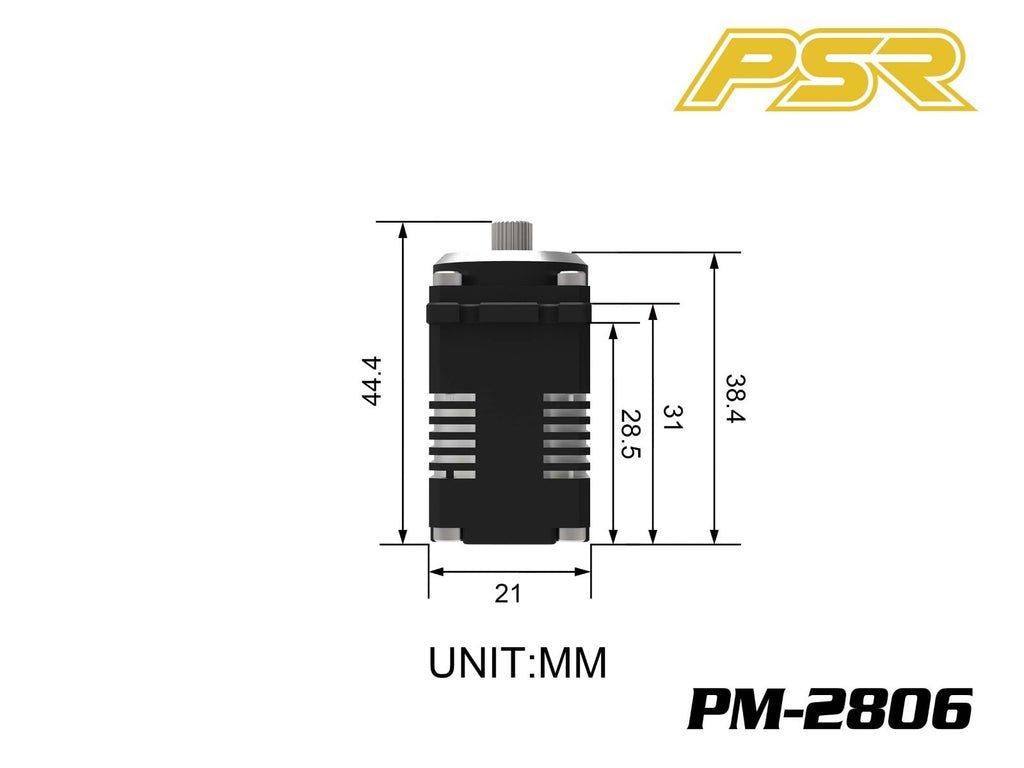

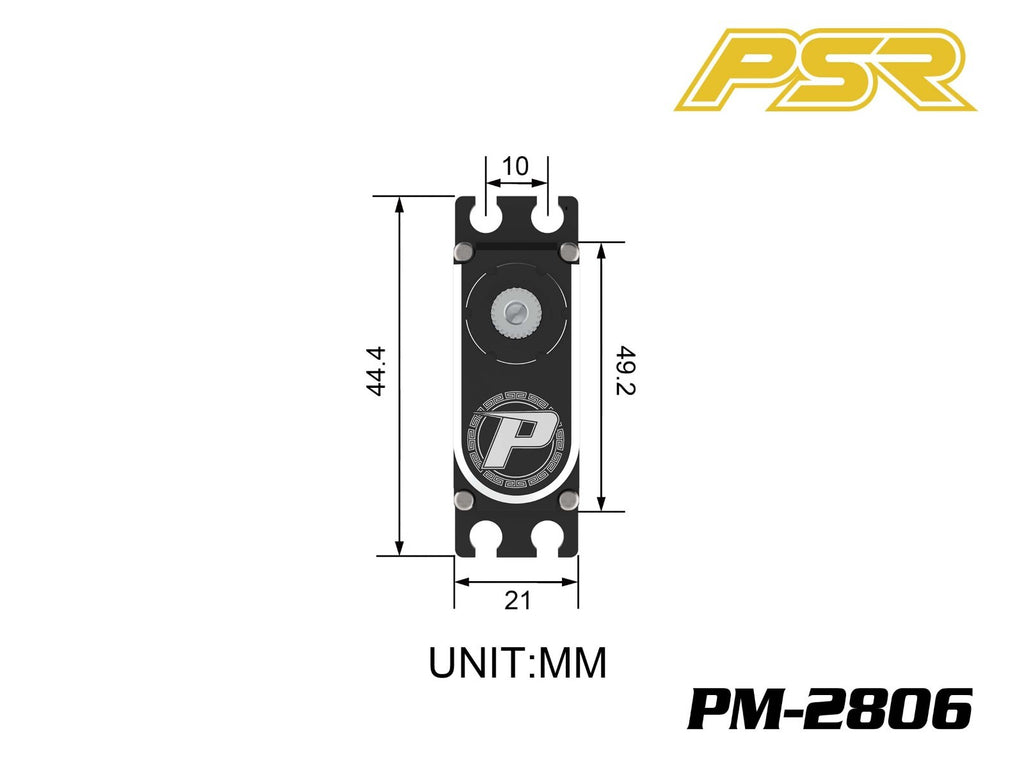

Size：40.5 x 21 x 38.4 mm
Wire Length:220mm
Wire Gauge: 22 AWG
Signal:Grey
Includes:
1 x Power Star Waterproof Servo

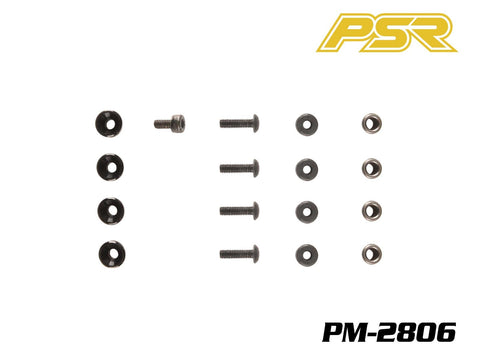

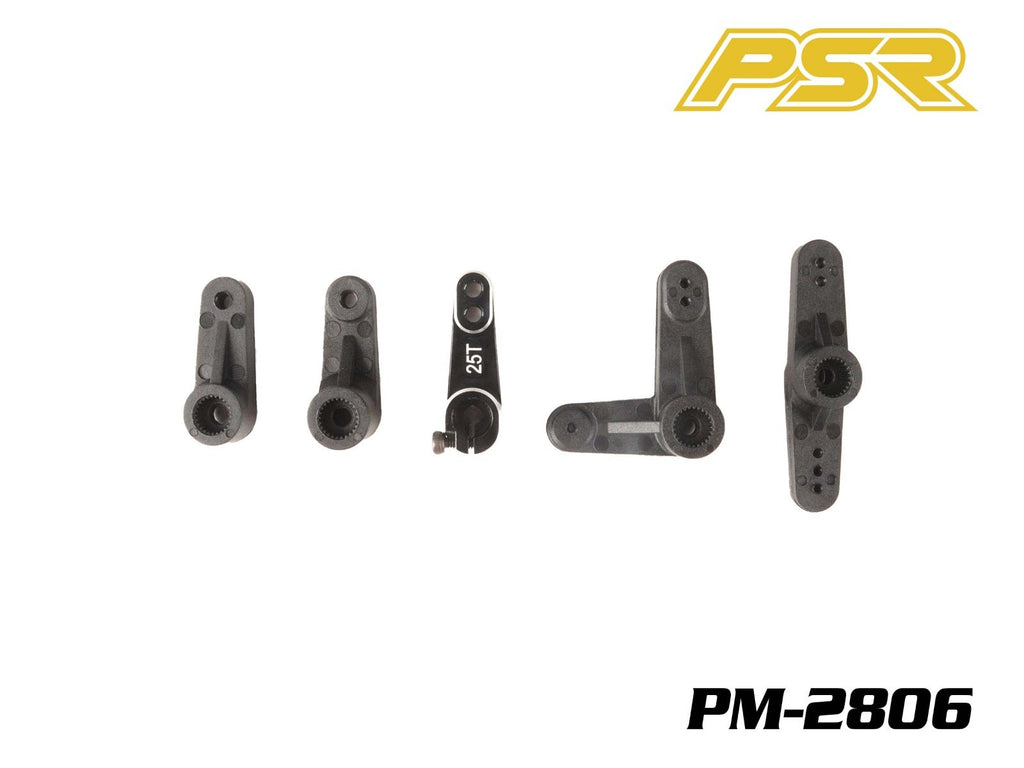

1 x Hardware/Servo Horn Bag
